Productdetails:
|
| P/N: | ATA150-24VDC | koelmethode: | Luchtkoeling |
|---|---|---|---|
| Uitstralende methode: | Luchtkoeling | Omgevingstemperatuur/vochtigheid: | -40 tot 55°C |
| Koelcapaciteit: | 145W | Ingangsvermogen: | 195W |
| Verwarmingscapaciteit: | 300W | Warm/koud zijde ventilator Cument: | 0.46/0.24 A |
| TEM nominale/opstartstroom: | 7.5/9.5A | Nominale/max. spanning: | 24/27VDC |
| Algemene dimensie: | 300 mmx180 mmx175 mm | Levensduur: | >=70.000 uur |
| Lawaai: | 50 dB | Tolerantie: | 10% |

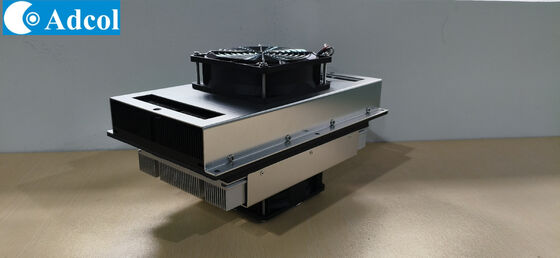

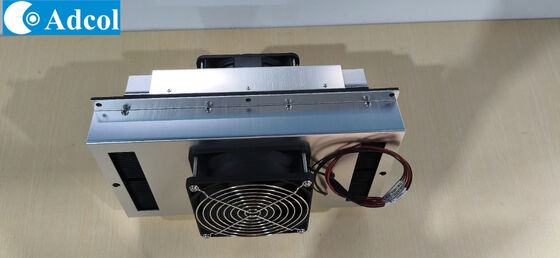

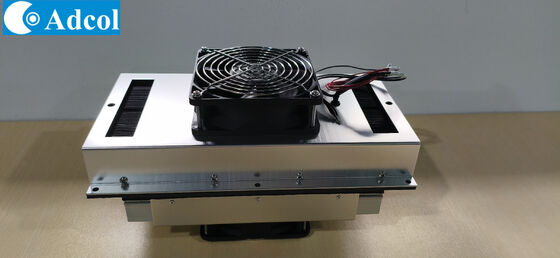

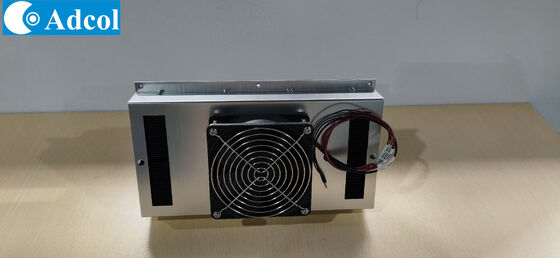

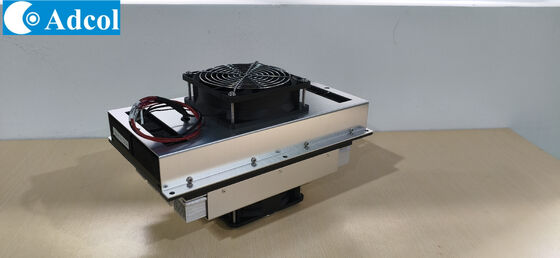

150W Air to air thermoelectric Cooler Assembly
1.Product Introduction
The ATA150-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental
chambers. lt can maintain ambient temperatures while removing up to 148w. This modelis available
in 24VDC configurations. This air conditioner isvirtually maintenance-free, with no filters ambient to
change.and it can be mounted in any orientation, offering designflexibility with solid-state reliability.
![]()
2.Features
3.Application
4.Performance Curve
![]()
5.Dimension
![]()
![]()
