80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

Grote Afbeelding :  80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

Productdetails:
Plaats van herkomst: China
Merknaam: ADCOL
Certificering: ISO9001 , CE
Modelnummer: ATP080-24VDC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1EA
Prijs: negotiable
Verpakking Details: Solid Carton -verpakking
Levertijd: 3 - 4 weken
Betalingscondities: T/T, PayPal
Levering vermogen: 500 stuks
Contact

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

beschrijving
P/N: ATP080-24VDC Koelmethode: Bord koel
Stralende methode: Luchtmacht Omgevingstemperatuur/vochtigheid: -20 tot 60 ° C
Koelcapaciteit: 80W Ingangsvermogen: 115W
Verwarmingscapaciteit: 190W Hot/koude zijventilatorstroom: 0.35 A / NA
Tem nominale/opstartstroom: 4,2/5,3A Nominale/max spanning: 24/30 VDC
Totale afmeting: 203 mm x 155 mm x 152 mm Lawaai: 45 dB
Gewicht: 3,6 kg Levensduur: > = 70.000 uur
Tolerantie: 10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

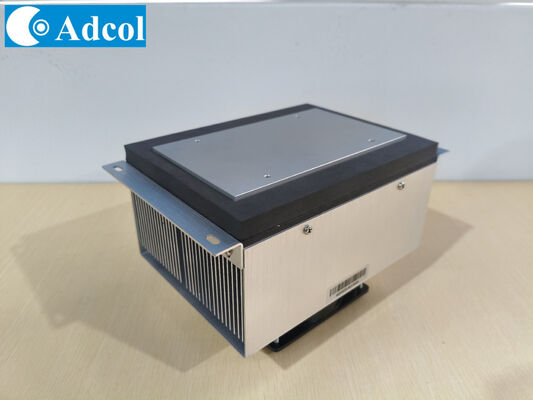

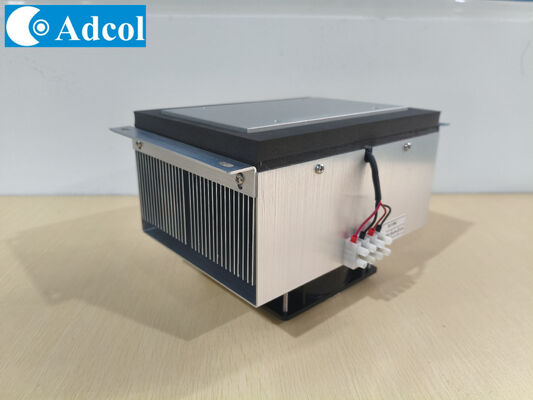

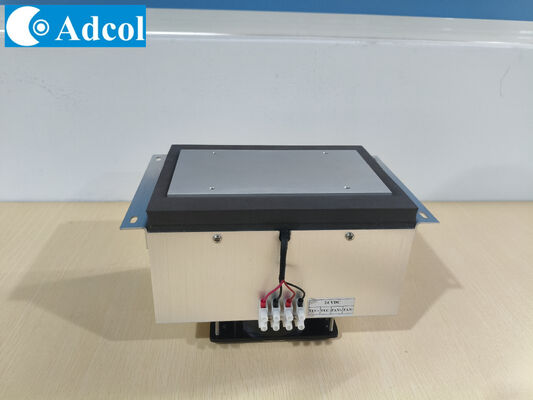

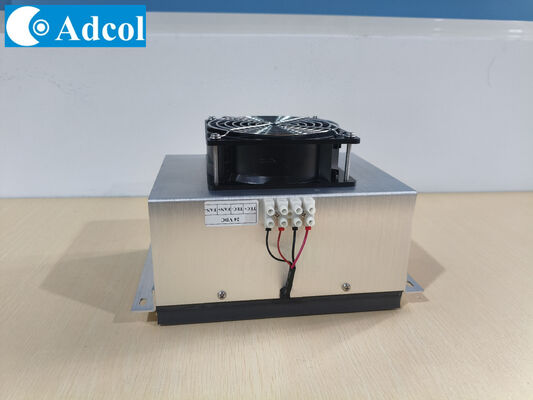

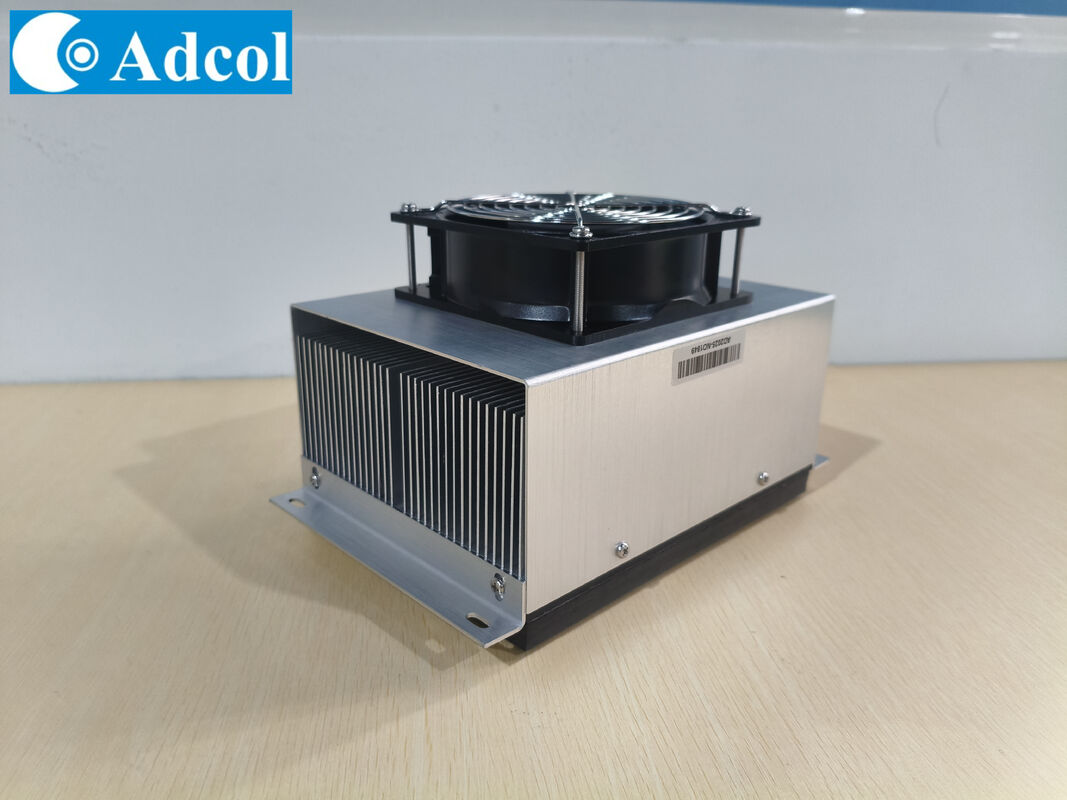

ATP080-24 Air to Plate thermoelectric Cooler Assembly



1.Product Introduction



The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC
configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 0


2.Features



  •  80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts





3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

4.Performance Curve

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 1


5.Dimension (mm)

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 2


6.Installation cut hole and Connector (mm)


80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 3



80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 480W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 5
