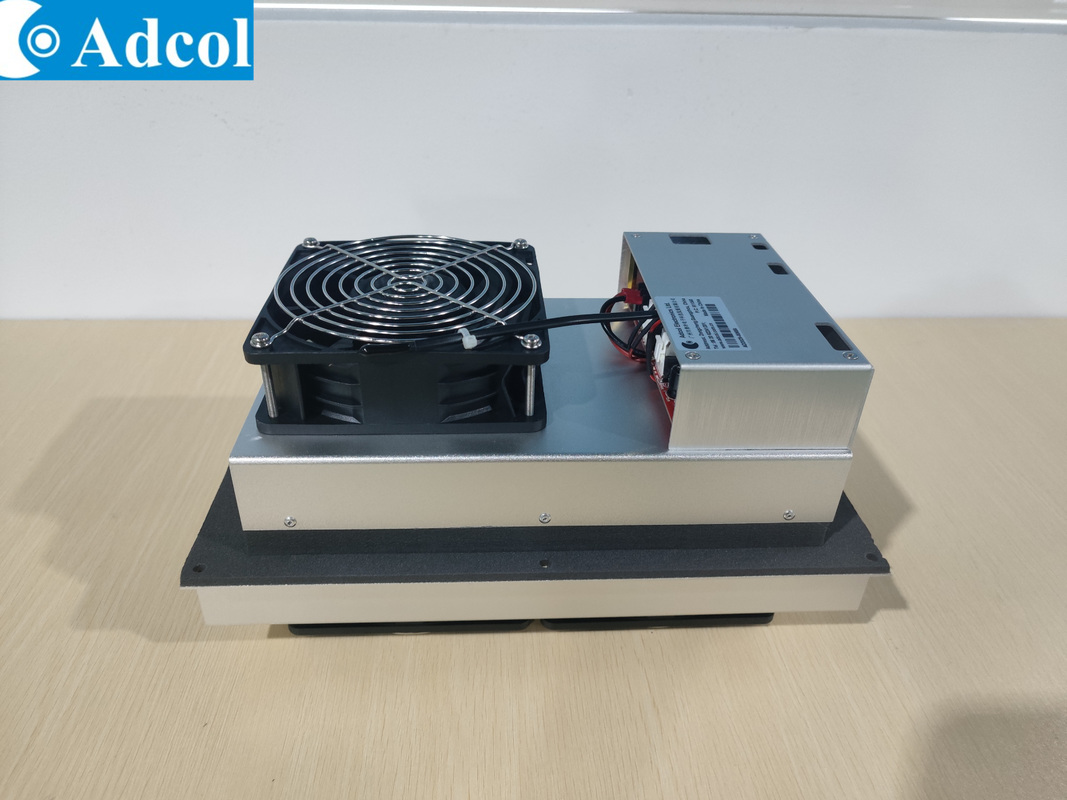

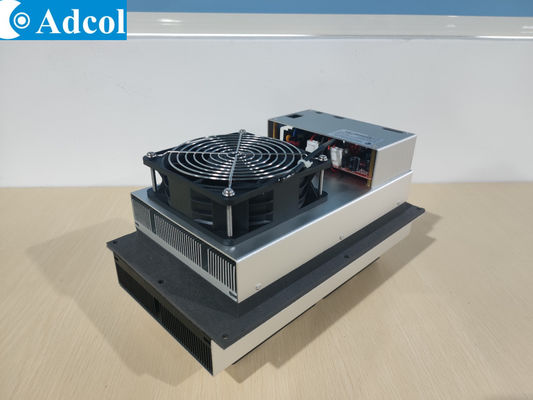

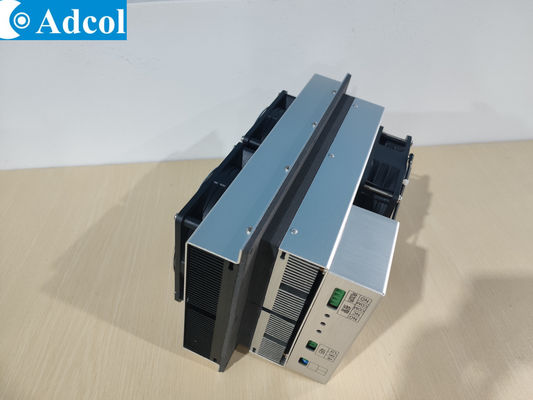

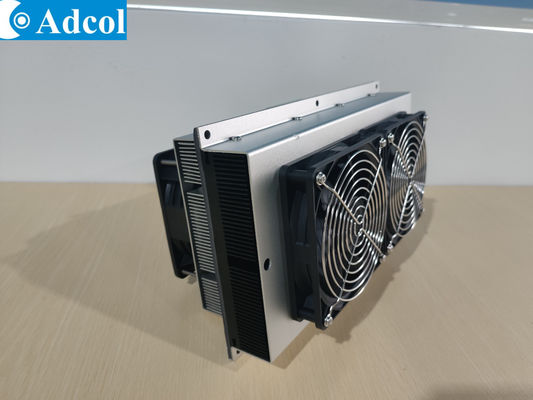

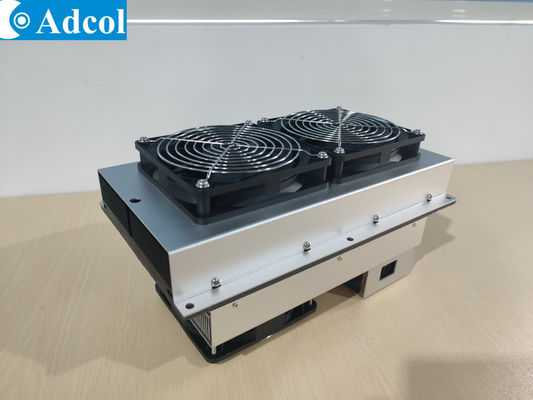

180W Unmanned Aerial Vehicle Air Conditioning System

180W Unmanned Aerial Vehicle  Air Conditioning System
180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System

Grote Afbeelding :  180W Unmanned Aerial Vehicle Air Conditioning System

Productdetails:
Plaats van herkomst: CHINA
Merknaam: Adcol
Certificering: ISO9001 , CE
Modelnummer: ATA180-24VDC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1EA
Prijs: negotiable
Verpakking Details: Solid Carton -verpakking
Levertijd: 3 - 4 weken
Betalingscondities: T/T, PayPal
Levering vermogen: 500 stcs

180W Unmanned Aerial Vehicle Air Conditioning System

beschrijving
P/n: ATA180-24VDC Koelmethode: Lucht koel
Stralende methode: Air Forc Omgevingstemperatuur/vochtigheid: -20 tot 60 ° C
Koelcapaciteit: 180W Invoerkracht invoeren: 330 W
Verwarmingscapaciteit: 520W Hot/koude zijventilatorstroom: 0.60/0.35 A
Tem nominale/opstartstroom: 12.5/14.8A Nominale/max spanning: 24/27 VDC
Gewicht: 7,5 kg Levenstijd: > = 70.000 uur
lawaai: 55 dB Tolerantie: 10%



Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.





180W Unmanned Aerial Vehicle Air Conditioning System



1.Product Introduction



The ATA180-24  is designed for Unmanned Aerial Vehicle Air Conditioning System
 It can maintain ambient temperatures while removing up to about 180W. This model is  available
in 24VDC configurations. This airconditioner is virtually maintenance-free, with no filters ambient
to change, and it can be mounted in any orientation, offering design  flexibility with solid-state reliability.

180W Unmanned Aerial Vehicle  Air Conditioning System 0

2.Features

  • About 180W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts


3.Application

  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

4.Performance Curve

180W Unmanned Aerial Vehicle  Air Conditioning System 1


5.Design drawing

180W Unmanned Aerial Vehicle  Air Conditioning System 2

180W Unmanned Aerial Vehicle  Air Conditioning System 3180W Unmanned Aerial Vehicle  Air Conditioning System 4
