ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

Grote Afbeelding :  ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

Productdetails:
Place of Origin: China
Merknaam: Adcol
Certificering: ISO9001 , CE
Model Number: ATL150-24VDC
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1EA
Prijs: negotiable
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

beschrijving
P/N: ATL150-24-00 Cooling Method: Liquid Cool
Radiating method: Air Force Ambient temperature/humidity: -20 to 60°C
Cooling Capacity: 150W Input Power: 205W
Outer dim for connector: 1/8 NPT Material of exchanger: Al with hard oxidation
Hot/Cold side fan Current: 0.35 A / NA TEM Nominal/Startup Current: 8.2/9.8A
Nominal/Max Voltage: 24/30 VDC Overall dimension: 160mm x 155mm x 138mm
Noise: 45 dB Weight: 3.1Kg
Life Time: >=70,000 Hours Tolerance: 10%

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 0





ATL150-24-00

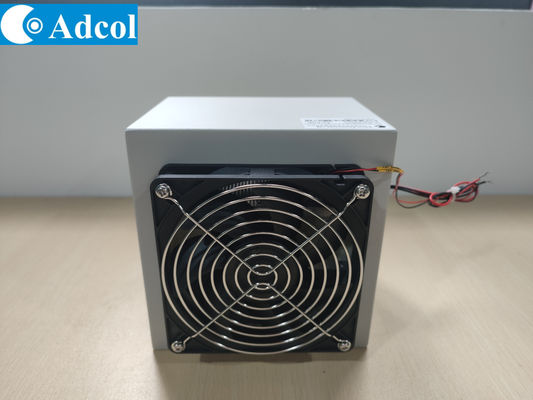

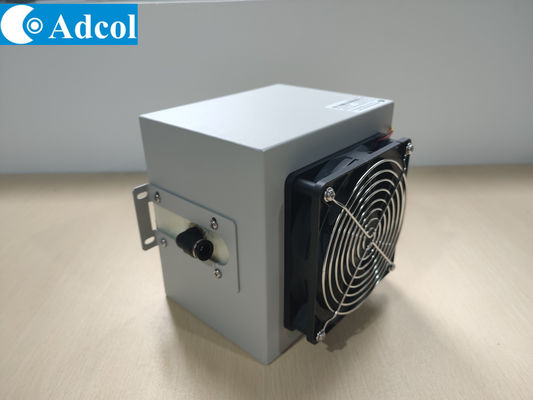

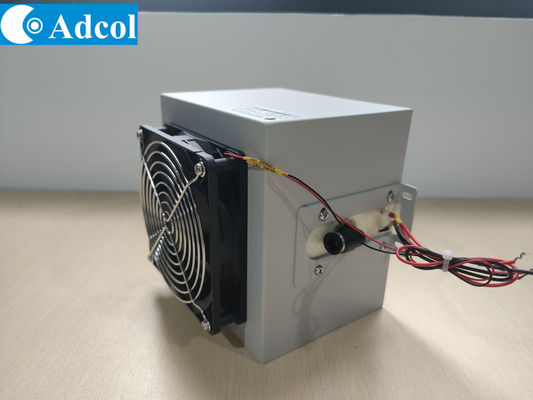

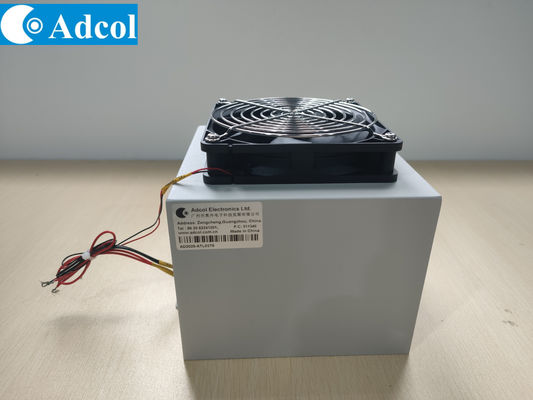

Air to Liquid  thermoelectric Cooler Assembly
 The ATL150-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is
absorbed through a liquid exchanger and dissipated by high density heatsink with fan.It could remove up
to 150W cooling, and is available in 24VDC configurations. Also it is virtually maintenance-free, and can
be mounted in any orientation, offering design flexibility with solid-state reliability.

Features
  • 150W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts



Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser



ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 1





ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 2





label:

thermo-elektrische peltierkoeler,

thermo-elektrische koelinrichting,

tec thermo-elektrische koeler
