150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers
150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

Grote Afbeelding :  150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

Productdetails:
Plaats van herkomst: China
Merknaam: Adcol
Certificering: ISO9001 , CE
Modelnummer: ARC150-220
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: negotiable
Verpakking Details: Solid Carton -verpakking
Levertijd: 3 - 4 weken
Betalingscondities: T/T, PayPal
Levering vermogen: 100 stcs/maand
Contact

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

beschrijving
Koelcapaciteit, Watt: 149 Verwarmingscapaciteit, watt※: 150-300
Stroom, ampère, 115VAC (230VAC): 2.0(1.0) Inlaatvermogen, watt: 230
Vloeistofcapaciteit, mL: 250 Maximale doorstroming, LPM: 6
Ingangsspanning, vac: 100 ~ 240 Frequentie, Hz: 50/60
Vochtigheid, RH%: ≤85% RH Gewicht, kg: 11.5
Typ van ventilatorlager: Hydraulisch lager Materiaal: koper en aluminium

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.



150W Thermoelectric Recirculating Liquid Chiller


1.Product Introduction

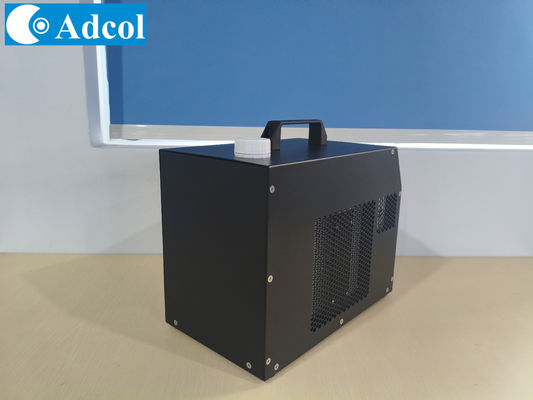

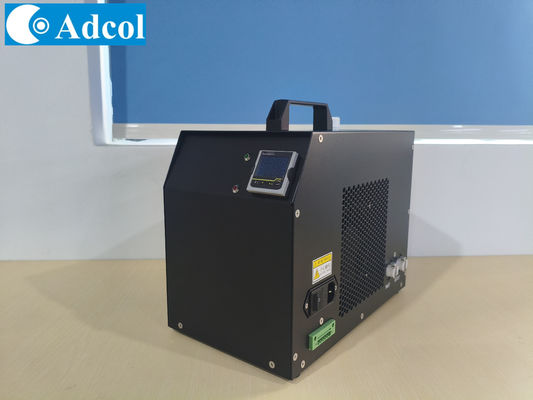

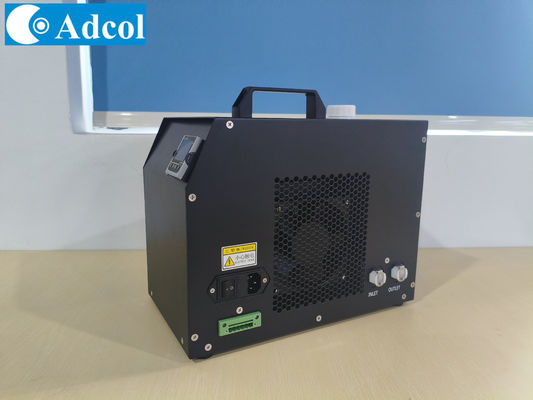

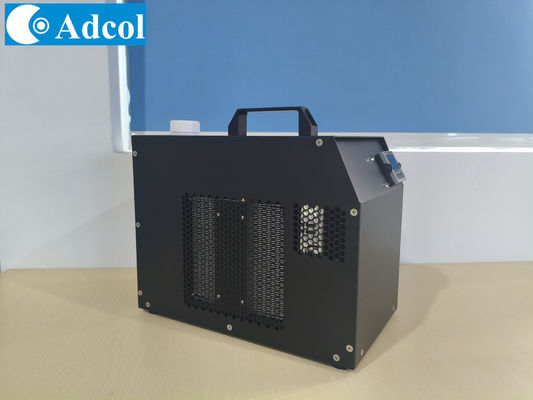

The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by
controlling the temperature of a coolant in a liquid circuit. The coolant is re-circulated using a pump
with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density
heat sinks equipped with brand name fans.The thermoelectric modules are custom designed to achieve
long life operation. The unit is regulated with an easy to use digital temperature controller and is housed
inside an aesthetic sheet metal casing. Also the chiller can provide the heating function to keep the circle
system at some Constant temperature point  in the range.


2.Technical Specification
  • Fast cooling and heating
  • Easy to operate
  • Environmentally friendly and refrigerant-free
  • Quiet
  • Programmable Digital Temperature Controller/ Auto-tune of PID control terms
  • System Error Monitor and alarm
  • Fluid inlet and outlet quick disconnect
  • High reliability


3.Typical Application
  • Medical Imaging Systems
  • Medical Lasers
  • Photonics Laser Systems
  • Industrial Instrumentation
  • Laboratory Testing





4.Structural Schematic



150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 0





5.Pump Capacity



150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 1





6.Cooling Capacity



Delta T =T ambient – T liquid – Degree C;
Cooling Capacity Qc – W
Liquid: Pure Water with current rate of Alcohol
ST: Standard unit, cooling only

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 2





7. Dimension(mm)



150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers 3
